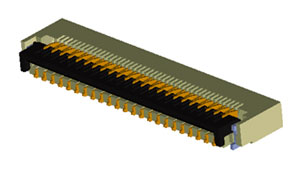

0.30mm Female FPC SMT Type

Pitch: 0.30mm Female FPC SMT Type

No.：165AFS01-XXXXXX

Specifications
Ordering Information
Dimension Information
Related Literature

Specifications：

Current Rating：0.5Ampere
Insulation Resistance：500MΩ Min
Dielectric Withstanding：150V AC
Contact Resistance：100mΩ Max
Operating Temperature：-55℃ to +85℃

Materials:

Contact Material：Copper Alloy
Housing Material：Polyester,UL 94V-0； LCP
All materials must meet HoRS tequirement for environmention protection

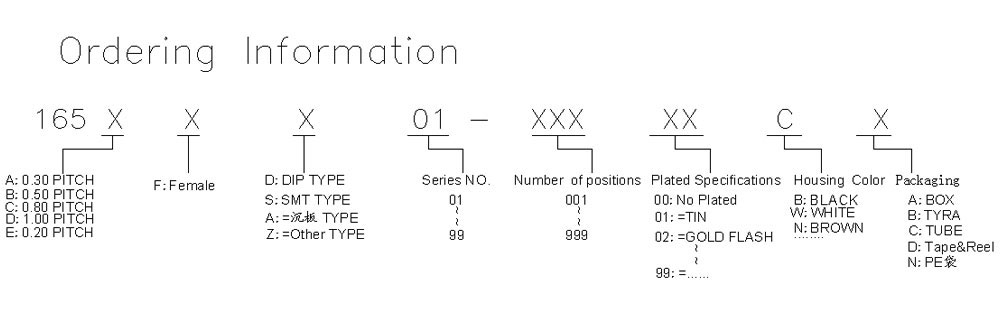

Ordering Information

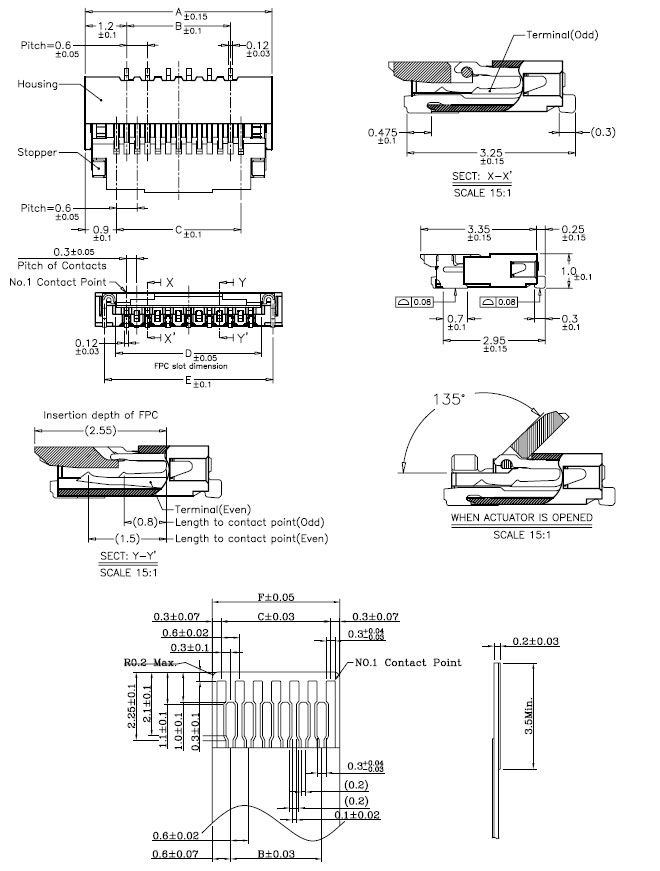

Dimension Information

No. of Pins/Row	Dimension Information					No. of Pins/Row	Dimension Information
No. of Pins/Row	A	B	C	D	E	No. of Pins/Row	A	B	C	D	E
13	5.40	3.00	3.60	4.23	4.90	35	12.00	9.60	10.20	10.83	11.50
15	6.00	3.60	4.20	4.83	5.50	37	12.60	10.20	10.80	11.43	12.10
17	6.60	4.20	4.80	5.43	6.10	39	13.20	10.80	11.40	12.03	12.70
19	7.20	4.80	5.40	6.03	6.70	41	13.80	11.40	12.00	12.63	13.30
21	7.80	5.40	6.00	6.63	7.30	45	15.00	12.60	13.20	13.83	14.50
23	8.40	6.00	6.60	7.23	7.90	49	16.20	13.80	14.40	15.03	15.70
25	9.00	6.60	7.20	7.83	8.50	51	16.80	14.40	15.00	15.63	16.30
27	9.60	7.20	7.80	8.43	9.10	57	18.60	16.20	16.80	17.43	18.10
29	10.20	7.80	8.40	9.03	9.70	61	19.80	17.40	18.00	18.63	19.30
31	10.80	8.40	9.00	9.63	10.30	71	22.80	20.40	21.00	21.63	22.30
33	11.40	9.00	9.60	10.23	10.90

Related Literature

Detailed product specifications chart (PDF) Download
Description:

Products 3D Models (PDF) Download
Description:

Product Specification (PDF) Download
Description:

Product Packaging (PDF) Download
Description:

Product Test Report (PDF) Download
Description:
